Manufactured from high-grade galvanized or galvalume steel, the sheets undergo advanced coating processes with Polyester, SMP, and PVDF paint systems, ensuring outstanding protection against corrosion, UV rays, and harsh weather conditions. The superior paint finish provides vibrant, long-lasting colours that enhance the overall aesthetics of any structure.

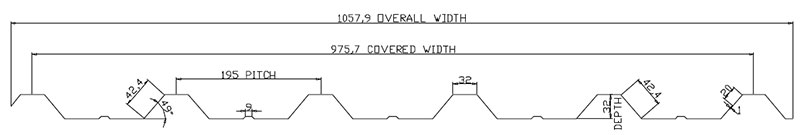

Profile Types
Technical Specifications
| Material | High Tensile Galvanized / Galvalume Steel |
|---|---|
| Thickness (TCT) | 0.35 mm – 0.80 mm |
| Width | 1060–1220 mm before profiling, 1000–1100 mm effective cover width |
| Length | Customized up to 12 meters |
| Paint System | Polyester / SMP / PVDF (18–20 microns top coat, 5–7 microns primer, 5–10 microns back coat) |
| Tensile Strength | 240–550 MPa |
| Coating Mass | 80–275 GSM (Zinc / Al-Zn) |
| Colors | Blue, Red, Green, White, Grey, Terracotta (custom shades available) |
| Applications | Industrial Sheds, Warehouses, Residential Roofing, Agricultural Buildings, Commercial Complexes |
